Exhibition Air Conditioner Wedding Tent Air Conditioner

  • Exhibition Air Conditioner Wedding Tent Air Conditioner
  • Exhibition Air Conditioner Wedding Tent Air Conditioner
  • Exhibition Air Conditioner Wedding Tent Air Conditioner
  • Exhibition Air Conditioner Wedding Tent Air Conditioner

Exhibition Air Conditioner Wedding Tent Air Conditioner

    Payment Type: L/C,T/T,Western Union
    Terms of Trade: FOB,CFR,CIF
    Min. Order: 1 Set/Sets
    Delivery Time: 30 Days
    Packaging: Plywood Casing or standard package suitable for sea and air transport
    Productivity: 6000PCS/Year
    Brand: Amrta or OEM
    Transportation: Ocean,Land,Air
    Place of Origin: China
    Supply Ability: 500PCS/Month
    HS Code: 8418612090
    Port: Qingdao,Shandong,China

Basic Info

Model No.: TA()

Product Description

Need outdoor Exhibition Air Conditioner Wedding Tent Air Conditioner for an exhibition tent? There are many tent cooling methods for various tent sizes and site locations. You can't control the weather. Amrta makes tent packaged unit possible. The slim, unobtrusive cabinet design works with any tented or temporary structure. Set-up is a snap and you'll be cooling minutes after the exhibition and wedding tent air conditioner unit is set in place.


Application areas

Outdoor big tents

Hospitals, warehouses, schools, offices, hotels, theaters
Outdoor events: exhibitions, wedding ceremonies, birthday parties, beer festivals, sporting events

Characteristics

01. Self-contained package design. Easy installation with just connecting condensate drainage and electrical power supply, equipped with connecting plug.
02. Special unit structure design. The tent wall can be installed in between of evaporator and condenser with the gap of 100-150mm.
03. Plenum chamber. 3 meter height with better air circulation and strong air flow.
04. Long distance air supply. High external static pressure ( max 350Pa ) with 30 meter air throws.
05. Digital Controller. LED display, timer display, fan speed display, temperature display, error code display, mode display.
06. Easy maintenance. Air filter is easily dismantled and cleaned.

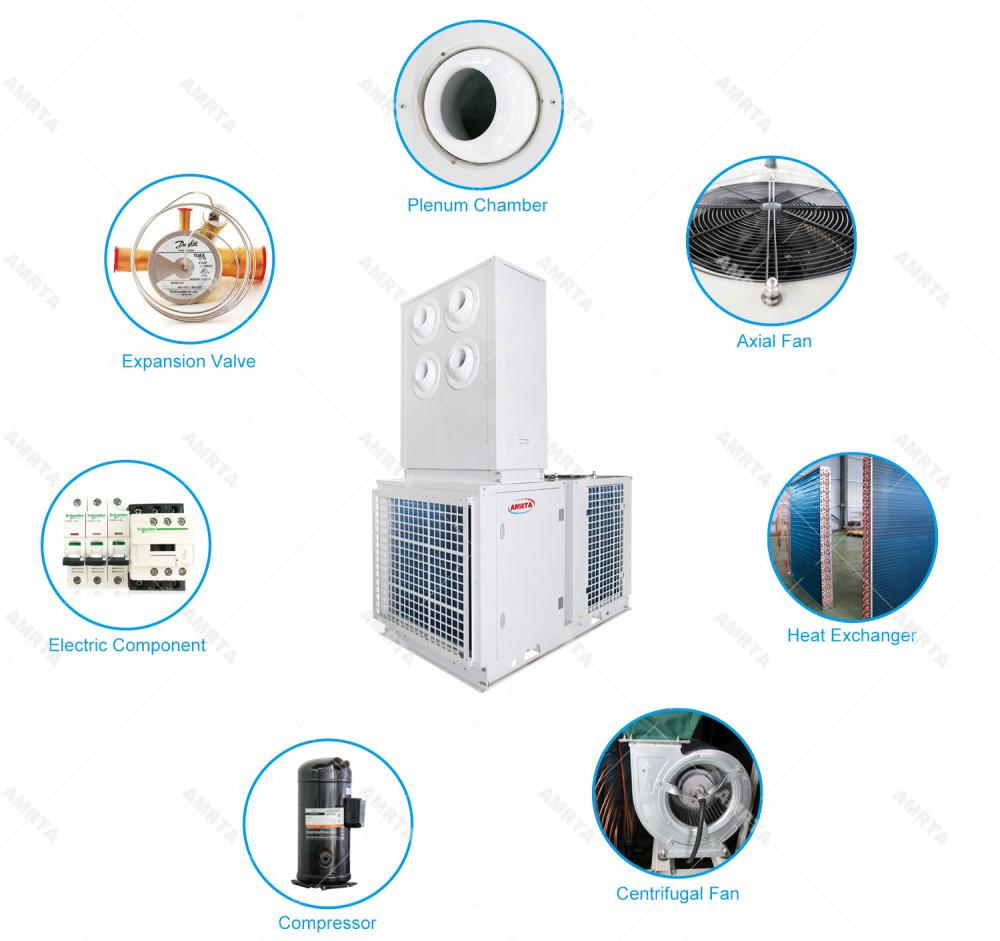

What's the Features of Out Tent Packaged Air Conditioner?
System Feature --- Package Air Conditioner --- Less Installation

Amrta Tent Packaged Unit


Product Feature --- Quick Installation --- Plug and Play

Amrta Tent Packaged System


Product Feature --- Big Volume, Long Distance, High Altitude --- Comfortable Air

Amrta Tent Packaged Unit HVAC System


Packing & Delivery

Amrta HVAC System

High Container Utilization Ratio --- Saving Container Shipping Costs
Stuffing Quantity: 22 Sets/ 40'HQ
Container Utilization Ratio: >95%


Tent AC Tent Air Conditioner



Technical Data


Model

TA-14

TA-28

TA-42

TA-56

TA-84

TA-100

Power supply

V~/PH/HZ

380/3/50

Cooling

Capacity

kW

14.0

28.0

42.0

56.0

84.0

100.0

HP

5

10

15

20

30

36

Btu/h

48000

96000

144000

192000

290000

340000

Power input

kW

4.90

9.80

14.80

19.80

29.80

35.60

Running current

A

8.7

17.5

26.1

34.9

51

71.7

Start current

A

26.0

35.0

52

70

95

95

EER

W/W

2.86

2.86

2.84

2.83

2.82

2.81

E.S.P

Pa

150

150

250

250

350

350

Evaporator

Fin material type

Hydrophilic louvered aluminum fin

Tube material type

Innergroover tube type

Number of row

3

4

4

4

5

5

Evaporator fan

Type

High efficiency Centrifugal

Air discharge type

Top discharge

Rated ESP air flow

m³/h

2500/1800

5000/3200

8000/5500

10000/7000

12000

15000

Condenser

Fin material type

Hydrophilic louvered aluminum fin

Tube material type

Innergroover tube type

Number of row

2

4

3

3

4

4

Condensing fan

Type

High efficiency axial

Air discharge type

Top discharge

Rated air flow

m³/h

5000

11000

16000

22000

32000

35000

Numbers

Pcs

1

1

2

2

2

2

Refrigerant

Type

R410A

Unit dimension

Width

mm

1060

1060

1060

2200

2200

2200

Depth

mm

1270

1700

1940

2360

2900

3600

Height

mm

2210

2210

2660

2660

2660

2660

Unit noise level

dB(A)

65

67

70

75

71

71

Unit weight

kg

320

450

560

650

1680

1840


Notes:

Nominal cooling capacities are based on the following conditions:Indoor temp: 27°CDB, 19°CWB; Outdoor temp: 35°CDB;
Actual noise level may differ, depending on the room structure, etc, since these noise values are from an anechoic room.

Jinan Amrta Air Conditioning Co.,Ltd



AMRTA specialize in commercial Air Conditioner and cooling system solutions for commercial and industrial use. Our products cover water chiller, Rooftop packaged unit, heat pump and fan coil units etc.

We AMRTA constantly build upon our history of proven innovation with new products and services that improve global comfort and efficiency.

AMRTA offer extraordinarily innovative and exceptionally reliable service, so why would you install anything but AMRTA? Please check our website
